XL Foldable Fat Tire E Bike

XL Foldable Fat Tire E Bike


20in XL Foldable Fat Tire E Bike


  • Powerful 500Watt rear Hub Motor
  • 48V 10.5A Samsung battery pack
  • Foldable, Extendable, Sustainable
  • 4" Wide Fat Tires & fork suspension

3 in stock

Equipped with powerful 500Watt rear hub motor, powered by 48V 10.5Ah Samsung Lion batteries —with 20-inch 4.25″ FAT TIRES, 7-speed gearing, and quick-release levers for fast size adjustments after unfolding.

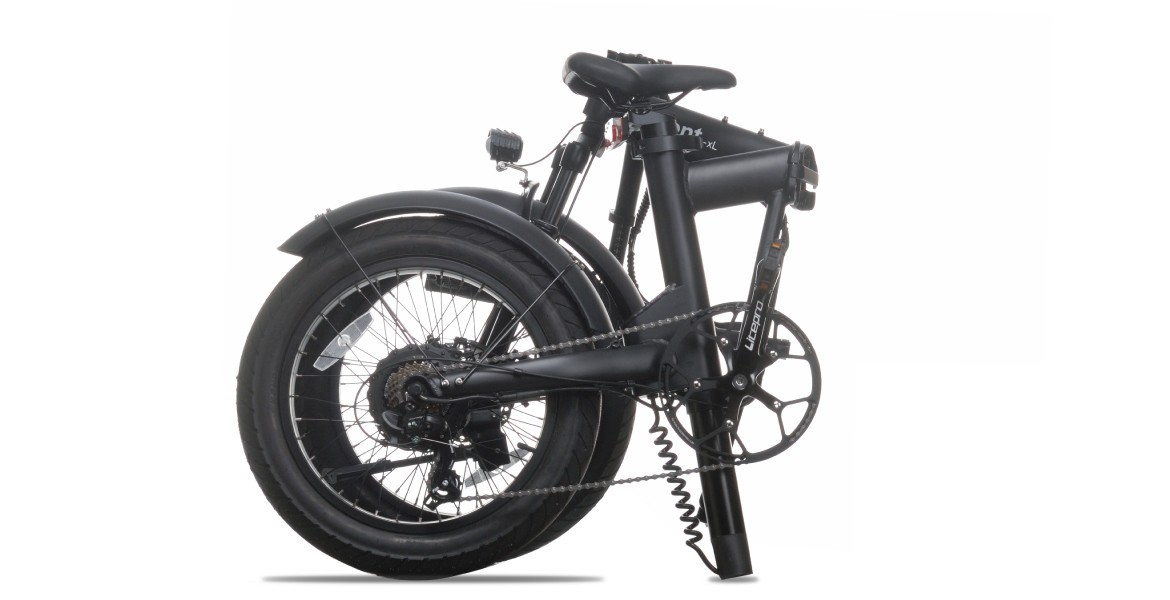

The aluminum frame Electrical bike weights only 50 lbs. Easily folds down to compact sizes as 35″ x 19″ x 28″ for space saving or putting in to the car. Features Shimano 7 speed mechanical shifting gear and 5 levels of riding assistant system.

Heavy duty frame system is good for rider weights up to 300lbs and 6’5″ in height.  Suitable for daily urban commute riding,  conjunction with multiple destinations , seamless transport between cars, bus, boats, and even air planes.  Fold easily into much small size and store it under your working desk or your condo closet spaces.

Additional information

Weight 32 kg
Dimensions 149 × 27 × 69 cm


Bike Weight

27.5kg / 60Lbs

Bike Size


Need Help? Contact Us Leave Feedback


  • Light-weight, compact, foldable size for car trunk and public transits
  • Perfect for daily city commutes and outdoor recreation riding
  • Eco Friendly electric bike with contemporary normal bike looking
  • Heavy duty aluminum frame supports riders up to 300lbs
  • High density 48V 10.5Ah Samsung Lithium-ion battery pack

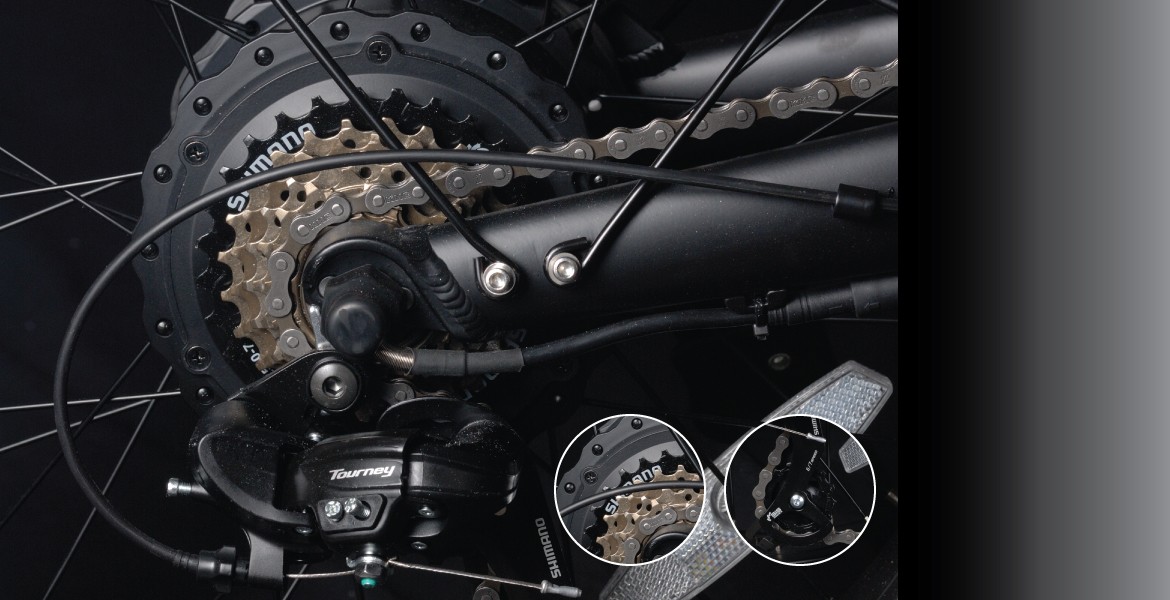

  • Powerful 500 Watt brushless geared hub motor
  • 7 speed Shimano gears and disk brakes
  • Uphill climbing up to 10-15 degree
  • Enormous 20 x 4.25″ fat tires
  • Dimension:                     1660X600X1150mm
  • Folded Dimension:        870X480X720mm
  • Wheel Base:                  1067mm
  • Carton Size:                   1490x270x690mm
  • Net Weight:                    27.5kg
  • Standard Loading:        150kg
  • Top Speed:                    32km/h
  • Motor:                              Geared brushless rear hub motor
  • Rated Power:                500Watt
  • Max Torque:                  60N.m
  • Motor Efficiency:         ≥80%
  • Battery Capacity:          48V10.5Ah – Samsung Lithium-ion cell
  • Charging Time:               5-6h
  • PAS System:                    5 level PAS + cruise
  • Range*:                             Up to 90Km *The range will be different from riding speed, road condition, rider’s weight, temperature, PAS Level and more.
  • Frame:                   20 in 6061 Al-alloy
  • Front Fork:           20 in 6061 Al-alloy
  • Rims:                     20 inch Al-Alloy blade
  • Chain Wheel:        52T
  • Fly Wheel:             Shimano14-24T
  • Derailleur:             Shimano 7 speed
  • Tires Width:          4.25in
  • Front Hub:            Sigma Al-Alloy
  • Brake Lever:         Al Alloy Tektro brake lever
  • Disk Brake:           NUTT 160mm disc brake
  • Foldable Pedal:                                 Yes
  • Throttle:                                             Yes
  • Stand:                                                Yes
  • Front & Rear light:                            Yes
  • Mudguards:                                       Yes
  • Flash Lamp:                                      Yes
  • Tool Set:                                            Yes
  • Bell:                                                   Yes
  • Extra 2nd set of Brake Pads:          Yes
  • Cap Holder:                                      Yes
  • Color:                                                Matt Black
